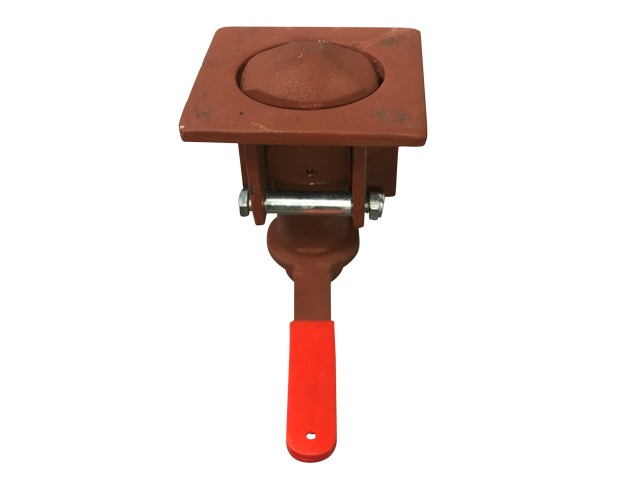

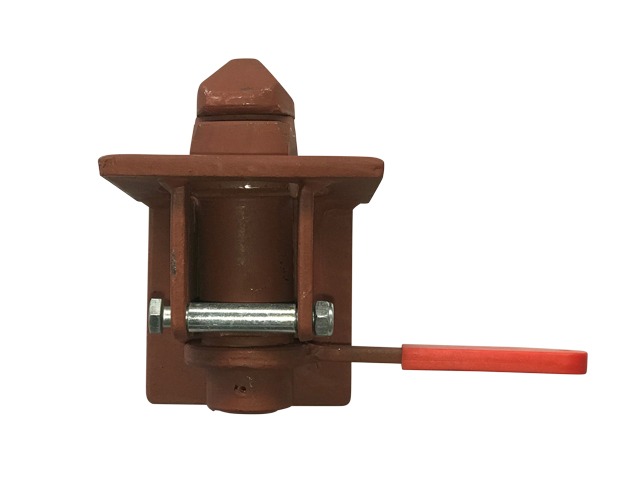

TWI-006 Trailer Twist Lock

SKU TWI-006 Categories , Tags ,

Trailer Twist Lock Short Handle

Material: Forged Steel
Finish: Paint
Load: Minimum breaking loads tension 500 kN / shear 420 kN
Mode: Dual function for manual and semi-automatic mode
Weight: 7.4Kgs
Handle: Standard short handle configuration

Availability: In Stock
Condition: New

As Australia’s largest supplier of shipping container parts and accessories, we are able to offer very competitive prices. We tailor all quote requests individually and make price adjustments for bulk and regular orders. For bulk order pricing, or to discuss your order or place an order in person, please contact us.

Truck Trailer Twist Lock For Shipping Containers – Tilt Tray Short Handle

This trailer twistlock is for use in a tilt tray truck bed when the tray is tilted and the twist lock needs to be lowered while the container is still on the truck.

The twist lock needs to stay locked with the container corner block but also allow for the changing angle of the tilt tray bed during unloading and loading.

Our trailer twistlock features a spring-loaded plate that allows the pin to slide up within the lock while still keeping the container firmly attached.

When tilt tray returns to level, the twist lock pin automatically re-engages.

This mechanism allows the shipping container to stay fastened securely during the tilting process giving a smooth unloading and loading of containers from the tilt tray.

TWI-006 has a standard, short handle. Our related product, TWI-003, has a long handle to help avoid the combing rail on a Truck Trailer.

This twist lock has manual and semi-automatic modes for unlocking and re-locking during tilting.

Features

  • Material: Forged Steel
  • Finish: Paint
  • Load: Minimum breaking loads tension 500 kN / shear 420 kN
  • Mode: Dual function for manual and semi-automatic mode
  • Weight: 7.4Kgs
  • Handle: Standard short handle configuration



Please contact us if you would like expert advice on the most suitable twist lock for your need. We are experienced in shipping container parts and accessories and are always happy to help.
